Show Advanced Settings / Hide Advanced Settings

Click this button to display a greater or lesser number of configuration fields.

Enable

Select this to allow management of the Zyxel Device by Cloud CNM SecuManager.

Auto

Select this if your Cloud CNM SecuManager server can access myZyxel to automatically get the URL from myZyxel. You also need CNM ID from the Cloud CNM SecuManager license.

Enter the CNM ID exactly as on the Cloud CNM SecuManager license.

myZyxel associates the CNM ID with the CNM URL which identifies the server on which Cloud CNM SecuManager is installed. Therefore you don’t need to enter the CNM URL when you select Auto.

Custom

Select this if your Cloud CNM SecuManager VM server cannot access myZyxel.

Select this if your VM server or Zyxel Devices are in a private network, or if the VM server is behind a NAT router. You then need to manually enter the VM server URL into the Zyxel Device. Enter the IPv4 IP address of the Cloud CNM SecuManager server followed by the port number (default 7547 for HTTPS or 7549 for HTPP) followed by the CNM ID from the license in CNM URL. For example, if you installed Cloud CNM SecuManager on a server with IP address 1.1.1.1 and CNM ID V6ABQNTPYGD, then type 1.1.1.1:7547/V6ABQNTPYG or 1.1.1.1:7549/V6ABQNTPYG as the CNM URL.

Choose the CNM URL protocol: HTTP or HTTPS. If you enter 1.1.1.1:7547 as the CNM URL, you must choose HTTPS as the Transfer Protocol, and then the whole CNM URL is https://1.1.1.1:7547. If you enter 1.1.1.1:7549 as the CNM URL, you must choose HTTP as the Transfer Protocol, and then the whole CNM URL is http://1.1.1.1:7549.

Periodic Inform

Enable this to have the Zyxel Device inform the Cloud CNM SecuManager server of its presence at regular intervals.

Type how often the Zyxel Device should inform Cloud CNM SecuManager server of its presence.

HTTPS Authentication

Select the checkbox if you have a HTTPs server trusted certificate.

Select an available certificate. Available certificates are in Object > Certificate > Trusted Certificates.

Apply

Click Apply to save your changes back to the Zyxel Device.

Reset

Click Reset to return the screen to its last-saved settings.

Enable SecuReporter

Select this to allow SecuReporter to collect and analyze logs from this Zyxel Device for security analytics to identify anomalies, alert on potential internal / external threats, and report on network usage.

Categories

Select the categories of logs that you want this Zyxel Device to send to the SecuReporter portal. There are two types:

Security Logs: App Patrol, Anti-Spam, Anti-Malware/Virus, Content Filter, Threat Protection (IDP/ADP)

Network: Traffic Log (for analysis of traffic usage). Do not select this if it impacts Zyxel Device performance.

SecuReporter Service License Status

Select this if your Cloud CNM SecuManager VM server cannot access myZyxel.

This field displays whether the service license is enabled at myZyxel (Activated) or not (Not Activated) or expired (Expired). There is also a link to buy a license.

This field displays whether you applied for a trial application (Trial) or have a standard license (Standard). This field is blank when a service is not activated.

This field displays the date in yyyy-mm-dd format that your service expires.

Apply

Click Apply to save your changes back to the Zyxel Device.

Reset

Click Reset to return the screen to its last-saved settings.

Server Status

This is the connection status between the Zyxel Device and the SecuReporter server. This field shows Connected when the Zyxel Device can synchronize with the SecuReporter server. This field shows Timeout when the Zyxel Device can’t synchronize with the SecuReporter server. This field shows Fail when the connection between the Zyxel Device and the SecuReporter server is down.

Device Name

Enter the name of the Zyxel Device. This Zyxel Device will be added to a new or existing organization.

Organization

This field appears if you haven’t created an organization in the SecuReporter server. Type a name of up to 255 characters and description to create a new organization.

Select an existing organization from the drop-down list box to add the Zyxel Device to the selected organization.

Type a name of up to 255 characters and description to create a new organization.

Data Protection Policy



Select this and personal data, such as user names, MAC addresses, email addresses, and host names, will be replaced with artificial identifiers in downloaded logs.

Select this and personal data, such as user names, MAC addresses, email addresses, and host names, will be replaced with anonymized information in downloaded logs.

Select this and personal data, such as user names, MAC addresses, email addresses, and host names, will be identifiable in downloaded logs.

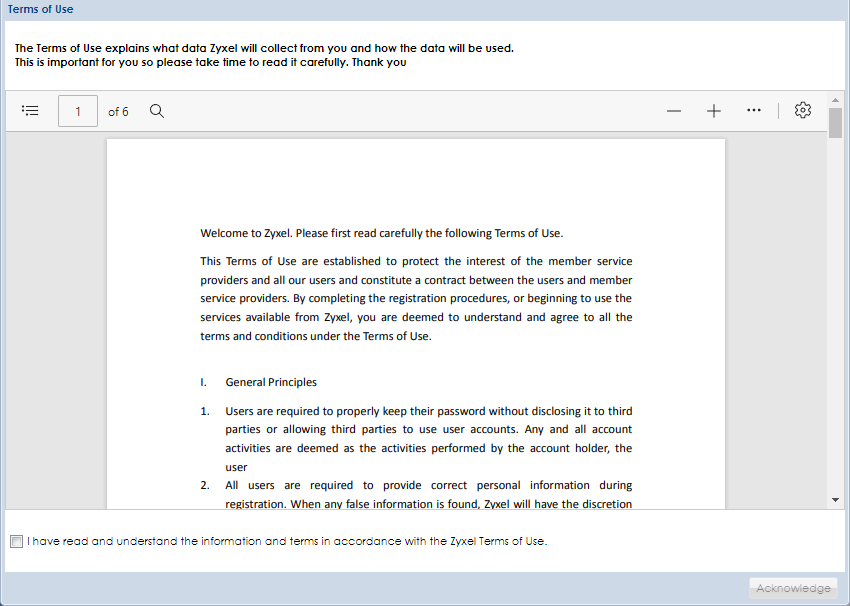

I have read and accept the SecuReporter Terms of Use.

Complete and Close Window

Review your configurations and then click this to apply the SecuReporter settings for this Zyxel Device.
