Network
Overview
This describes how you can configure the management IP address and VLAN settings of your Zyxel Device.

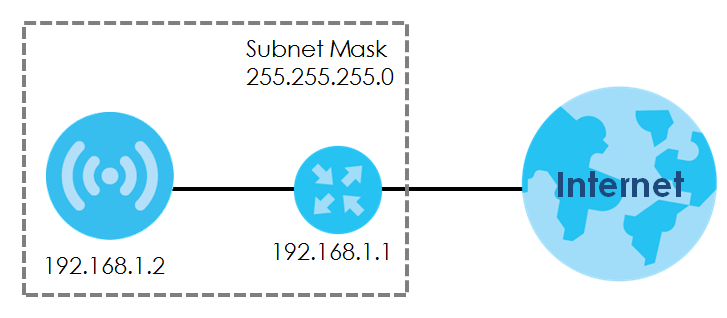

IP Setup
IP Setting
Use this screen to configure the IP address for your Zyxel Device.
Label | Description |
|---|---|
IP Address Assignment | |
Get Automatically | Select this to make the interface a DHCP client and automatically get the IP address, subnet mask, and gateway address from a DHCP server. |
Use Fixed IP Address | Select this if you want to specify the IP address, subnet mask, and gateway manually. |
IP Address | Enter the IP address for this interface. |
Subnet Mask | Enter the subnet mask of this interface in dot decimal notation. The subnet mask indicates what part of the IP address is the same for all computers in the network. |
Gateway | Enter the IP address of the gateway. The Zyxel Device sends packets to the gateway when it does not know how to route the packet to its destination. The gateway should be on the same network as the interface. |
DNS Server IP Address | Enter the IP address of the DNS server. |
IPv6 Address Assignment | |
Enable Stateless Address Auto-configuration (SLAAC) | Select this to enable IPv6 stateless auto-configuration on the Zyxel Device. The Zyxel Device will generate an IPv6 address itself from a prefix obtained from an IPv6 router in the network. |
Link-Local Address | This displays the IPv6 link-local address and the network prefix that the Zyxel Device generates itself for the LAN interface. |
IPv6 Address/Prefix Length | Enter the IPv6 address and the prefix length for the LAN interface if you want to use a static IP address. This field is optional. The prefix length indicates what the left-most part of the IP address is the same for all computers in the network, that is, the network address. |
Gateway | Enter the IPv6 address of the default outgoing gateway using colon (:) hexadecimal notation. |
Metric | Enter the priority of the gateway (if any) on the LAN interface. The Zyxel Device decides which gateway to use based on this priority. The lower the number, the higher the priority. If two or more gateways have the same priority, the Zyxel Device uses the one that was configured first. Enter zero to set the metric to 1024 for IPv6. |
DHCPv6 Client | Select this option to set the Zyxel Device to act as a DHCPv6 client. |
DUID | This field displays the DHCP Unique IDentifier (DUID) of the Zyxel Device, which is unique and used for identification purposes when the Zyxel Device is exchanging DHCPv6 messages with others. |
Request Address | Select this option to get an IPv6 address from the DHCPv6 server. |
DHCPv6 Request Options | Select this option to determine what additional information to get from the DHCPv6 server. |
DNS Server | Select this option to obtain the IP address of the DNS server. |
NTP Server | Select this option to obtain the IP address of the NTP server. |
Apply | Click Apply to save your changes back to the Zyxel Device. |
Reset | Click Reset to return the screen to its last-saved settings. |
VLAN
Note: Mis-configuring the management VLAN settings in your Zyxel Device can make it inaccessible. If this happens, you will have to reset the Zyxel Device.
A Virtual Local Area Network (VLAN) allows a physical network to be partitioned into multiple logical networks. Devices on a logical network belong to one group. A device can belong to more than one group. With VLAN, a device cannot directly talk to or hear from devices that are not in the same group(s); the traffic must first go through a router.
Wireless Bridge VLAN ID
Wireless bridge VLAN allows you to have clients in different WiFi networks appear to be in the same virtual network using VLAN IDs. VLAN IDs are sent across the wireless bridge so that only clients with the same VLAN ID receive that network traffic. See Zyxel Device Roles for more information on the wireless bridge.
In the figure below, a client (C2) in the branch office wants to connect to the main office (Y). The branch office client (C2) can connect to the main office network using the VLAN ID 10. However, the branch office client (C2) cannot connect to the to the main office network using the VLAN ID 20 because that VLAN ID does not exist in the main office network. To bridge the branch office network and the main office network, the VLAN IDs you set on the Zyxel Device (X) should be the same as the VLAN IDs you set on the root AP (Y).
Wireless Bridge VLAN ID Example
Use this screen to configure the VLAN settings for your Zyxel Device.
Label | Description |
|---|---|
VLAN Settings | |
Management VLAN ID | Enter a VLAN ID for the Zyxel Device. |
As Native VLAN | Select this option to treat this VLAN ID as a VLAN created on the Zyxel Device and not one assigned to it from outside the network. |
Wireless Bridge Vlan Setting | |
Add | Click this to add an entry in the table. |
Remove | Select an entry and click this to remove the selected entry. |
# | This field is a sequential value. It is not associated with any VLAN ID. |
Wireless Bridge Vlan ID (1-4094) | Enter a VLAN ID for the wireless bridge. Duplicate VLAN IDs are not allowed. The VLAN IDs you set on your root AP should be the same as the VLAN IDs you set here. See Zyxel Device Roles for more information on wireless bridge. |
Apply | Click Apply to save your changes back to the Zyxel Device. |
Reset | Click Reset to return the screen to its last-saved settings. |
NCC Discovery
You can manage the Zyxel Device through the Zyxel Nebula Control Center (NCC). Use this screen to configure the proxy server settings if the Zyxel Device is behind a proxy server.
label | description |
|---|---|
Nebula Control Center Status | |
Internet | This field displays whether the Zyxel Device can connect to the Internet. |
Nebula Connectivity | This field displays whether the Zyxel Device can connect to the Zyxel Nebula Control Center (NCC). |
Nebula Control Center Discovery Setting | |
Enable | Select this option to turn on NCC discovery on the Zyxel Device. The Zyxel Device will try to discover the NCC and go into NCC management mode when it is connected to the Internet and has been registered in the NCC. If NCC discovery is disabled, the Zyxel Device will not discover the NCC and remain in standalone operation. |
Use Proxy to Access NCC | If the Zyxel Device is behind a proxy server, you need to select this option and configure the proxy server settings so that the Zyxel Device can access the NCC through the proxy server. |
Proxy Server | Enter the IP address of the proxy server. |
Proxy Port | Enter the service port number used by the proxy server. |
Authentication | Select this option if the proxy server requires authentication before it grants access to the NCC. |
User Name | Enter your proxy user name. |
Password | Enter your proxy password. |
Apply | Click Apply to save your changes back to the Zyxel Device. |
Reset | Click Reset to return the screen to its last-saved settings. |
